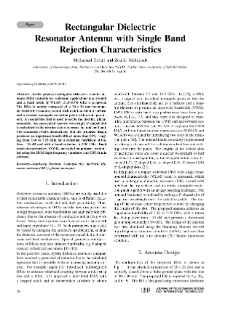

Rectangular Dielectric Resonator Antenna with Single Band Rejection Characteristics, Journal of Telecommunications and Information Technology, 2019, nr 1
Download

Title: Rectangular Dielectric Resonator Antenna with Single Band Rejection Characteristics, Journal of Telecommunications and Information Technology, 2019, nr 1

Autor:

Mahdjoub, Zoubir ; Debab, Mohamed

Data wydania:

2019, nr 1

Typ zasobu:

artykuł

Opis:

In this paper, a rectangular dielectric resonator antenna (DRA) suitable for wideband applications is presented and a band notch of WLAN (5.15–5.75) GHz is proposed. The DRA is mainly composed of a 20 × 20 mm rectangular dielectric resonator, coated with metal on the top surface, and a circular monopole excitation patch with an air gap insert. A coaxial line feed is used to excite the circular, planar monopole. An open-ended quarter wavelength C-shaped slot is embedded in the circular patch to create the notched band. The simulated results demonstrate that the proposed design produces an impedance bandwidth of more than 80%, ranging from 3.10 to 7.25 GHz for a reflection coefficient of less than −10 dB and with a band rejection at 5.50 GHz. Band notch characteristics, VSWR, and radiation patterns are studied using the HFSS high-frequency simulator and CST Studio software.

Wydawca:

Instytut Łączności - Państwowy Instytut Badawczy

Format:

application/pdf

Identyfikator zasobu:

ISSN 1509-4553, on-line: ISSN 1899-8852 ; oai:bc.itl.waw.pl:2072

Źródło:

Journal of Telecommunications and Information Technology

Język:

ang

Prawa:

Biblioteka Naukowa Instytutu Łączności

Subject and keywords:

C-shaped slot band-stop function planar monopole dielectric resonator antenna (DRA)
